27系列 液冷氩弧焊枪
常规焊枪额定值：500A DC
暂载率：100%
钨棒直径：1.6~6.4mm
暂载率：100%
钨棒直径：1.6~6.4mm

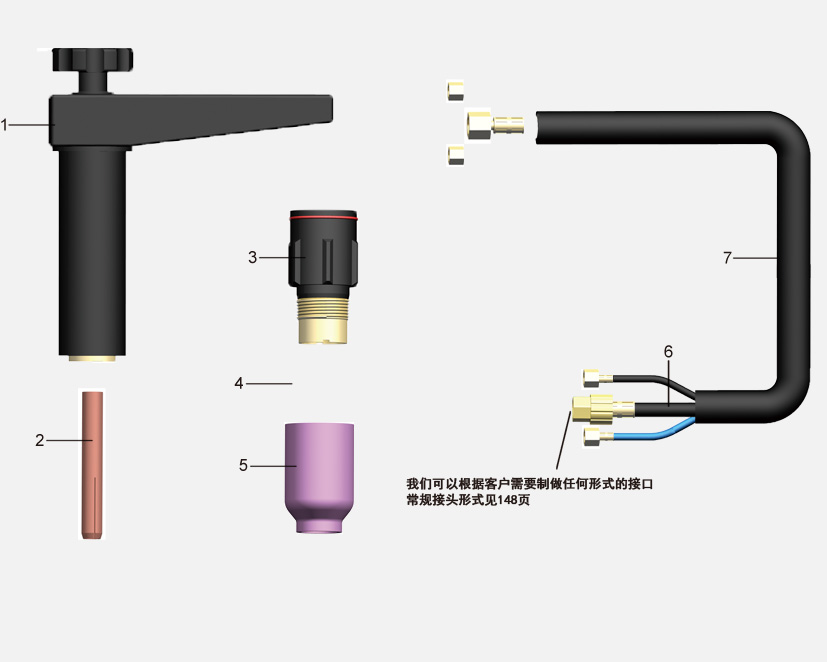

| No. | Order | 描述 | Standard No. |
| TWP0700.04 | WP-27 枪4 米 (12.5英尺） | WP-27-1 (4m) | |
| TWP0701.04 | WP-27长柄枪4米 ( 12.5 英尺） | WP-27-1L (4m) | |
| 1 | TWP0710.01 | 枪头(8英寸 , 含阀杆) | WP-27 |
| TWP0710.02 | 枪头(20英寸, 含阀杆 ) | WP-27 (Long) | |
| 2 | TWP0732.01 | 电极夹 | 57N45,1.0mm |
| TWP0732.02 | 电极夹 | 57N46,1.6mm | |
| TWP0732.03 | 电极夹 | 57N47,2.4mm | |
| TWP0732.04 | 电极夹 | 57N48,3.2mm | |
| TWP0732.05 | 电极夹 | 57N49,4.0mm | |
| TWP0732.06 | 电极夹 | 57N50,4.8mm | |
| TWP0732.07 | 电极夹 | 57N51,6.4mm | |
| 3 | TWP0734.01 | 气筛 | 49V22,1.0mm |
| TWP0734.02 | 气筛 | 49V23,1.6mm | |
| TWP0734.03 | 气筛 | 49V24,2.4mm | |
| TWP0734.04 | 气筛 | 49V25,3.2mm | |
| TWP0734.05 | 气筛 | 49V26,4.0mm | |
| TWP0734.06 | 气筛 | 49V27,4.8mm | |
| TWP0734.07 | 气筛 | 49V28,6.4mm | |
| 4 | TWP0731 | 绝缘垫片 | 57N56 |
| 5 | TWP0135.20 | 陶瓷氩嘴 | 57N75,10mm |
| TWP0135.21 | 陶瓷氩嘴 | 57N74,13mm | |
| TWP0135.22 | 陶瓷氩嘴 | 53N88,16mm | |
| TWP0135.23 | 陶瓷氩嘴 | 53N87,19mm | |
| TWP0735.01 | 陶瓷氩嘴 | 53N89,Short | |
| 6 | TWP0750 | 电缆组 | |
| 7 | TWP0751 | 电缆护套 |
