BW Q300 气体保护焊枪
配件适用于伯那德系列额定值: 320A CO₂/270A 混合气体
暂载率: 60%
焊丝直径: 0.8~1.2mm
暂载率: 60%
焊丝直径: 0.8~1.2mm
枪与配件适用于伯那德

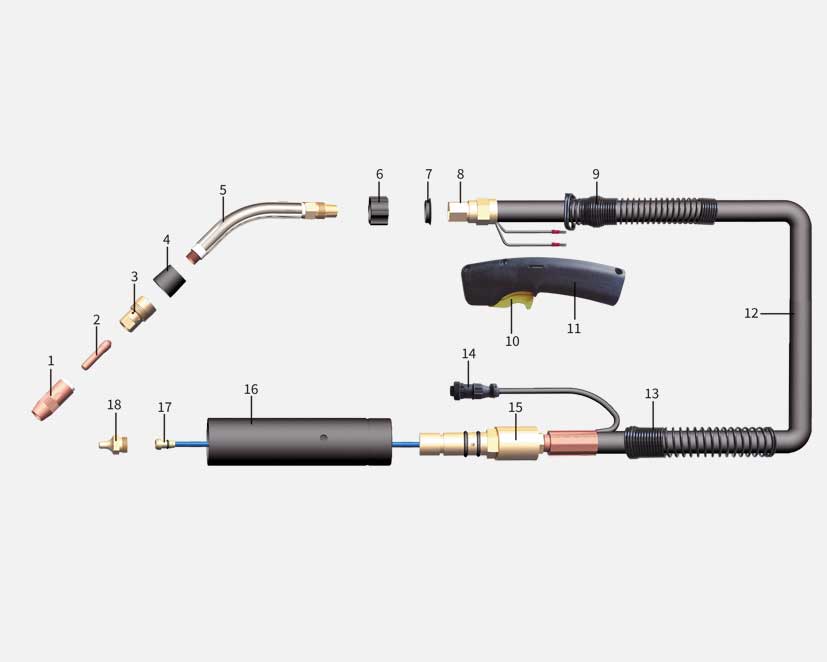

| No. | Order | 描述 | OEM p/n |
| MBN0100.03 | BW Q300 整枪3 米 | ||
| MBN0101.05 | BW Q300 整枪5 米 | ||
| 1 | MBN0130 | 喷管Ø16mm | NS-5818C |
| 2 | MBN0132.01 | 导电嘴0.8 | T-030 |
| MBN0132.02 | 导电嘴0.9 | T-035 | |
| * | MBN0132.03 | 导电嘴1.0 | T-039 |
| MBN0132.04 | 导电嘴1.2 | T-045 | |
| 3 | MBN0135 | 导电嘴座 | DS-1 |
| 4 | MBN0147 | 绝缘帽 | 4523R |
| 5 | MBN0143 | 弯管 | QT3-45 |
| 6 | MBN0148 | 螺母紧帽 | 1840057 |
| 7 | MBN0149 | 绝缘垫 | 1840031 |
| 8 | MBN0175.01 | 枪体 | 4213B |
| 9 | MBN0196 | 手把弹簧 | 2520042 |
| 10 | MBN0195.07 | 开关 | 2690001 |
| 11 | MBN012C | 手把 | 1880155 |
| 12 | MBN0160.01 | 电缆组, 3 米 | |
| MBN0160.02 | 电缆组, 5 米 | ||
| 13 | MBN0197 | 后电缆支撑弹簧 | |
| 14 | MBN0174 | 控制插头 | W11127-002 |
| 15 | MBN0175.01 | 后枪体 | |
| 16 | MBN0171 | 接头把套 | |
| 17 | MBN0182.01F | 蓝色送丝软管, 适用焊丝 Ø0.9-1.1, 3.5 米 | |
| MBN0182.01G | 蓝色送丝软管, 适用焊丝 Ø0.9-1.1, 5.5 米 | ||
| 18 | MBN0176 | 导丝帽 | 4477 |
* 标准配置
BLACK WOLF is in no way affiliated with BERNARD. The parts advertised for sale are not genuine BERNARD parts, but are parts made for and by BLACK WOLF.
References to BERNARD machines, torches,and numbers are for your convenience only. We reserve the right to substitute genuine BERNARD parts in place of BLACK WOLF parts.
