BW MAX200P 液冷等离子切割枪
高频液冷系列等离子切割枪标准长度 : 7.5 米 10 米 暂载率 100% : 200A
等离子气体入口压力 : 6.21-8.28bar 保护气体入口压力 : 6.21bar
等离子气体入口压力 : 6.21-8.28bar 保护气体入口压力 : 6.21bar
枪与配件适用于海别得

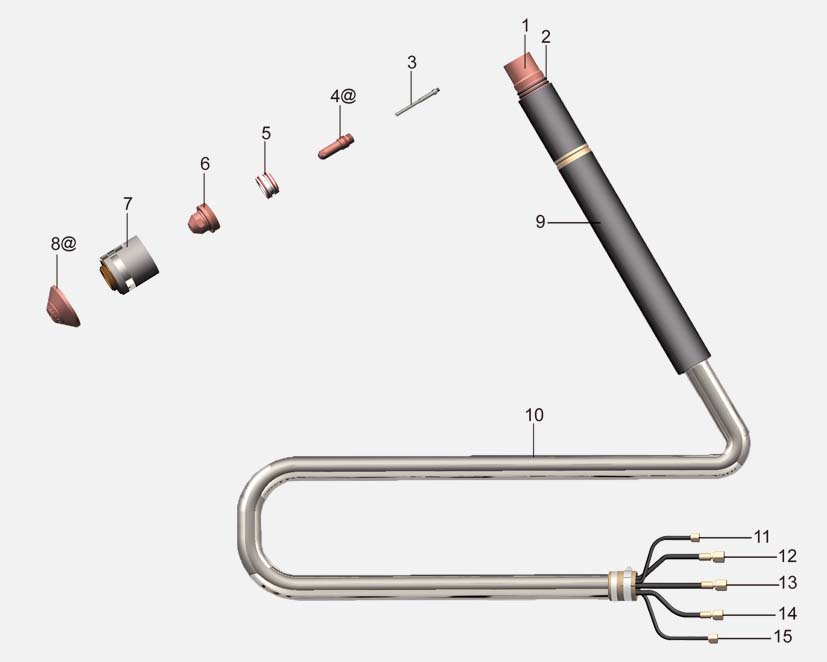

| No. | Order | 描述 | OEM p/n |
| PHP1100.07 | BW MAX200P 等离子机用切割枪 , 7.5 米 | ||
| PHP1101.10 | BW MAX200P 等离子机用切割枪 , 10 米 | ||
| 1 | PHP1111 | BW MAX200P 机用枪头 | 120584 |
| 2 | PHP1113 | O 型圈 | 044027 |
| 3 | PHP1130 | 水冷却管 | 020963 |
| 4* | PHP1131.01@ | 电极 200A | 220021 |
| PHP1131.02@ | 电极 200A | 120667 | |
| PHP1131.03@ | 电极 200A（银端 ) | 220083 | |
| PHP0731.03@ | 电极 200A（银端 ) | 220084 | |
| 5 | PHP1136 | 涡流环 | 020607 |
| 6 | PHP1132.01 | 喷嘴 200A ( 氧气 ) 2.0mm | 020605 |
| * | PHP1132.02 | 喷嘴 200A ( 空气 ) 2.2mm | 020608 |
| 7 | PHP1135 | 外固定罩 | 120837 |
| 8 | PHP1134.01@ | 保护罩 | 020424 |
| 9 | PHP1121 | 机用手把 | |
| 10 | PHP1182 | 屏蔽套 | |
| 11 | PHP1174 | 盖传感器管螺母 3/8-24UNF | |
| 12 | PHP1175 | 保护气体管螺母 1/2-20UNF | |
| 13 | PHP1175 | 进水管螺母 1/2-20UNF | |
| 14 | PHP1175 | 出水管螺母 1/2-20UNF | |
| 15 | PHP1174 | 离子气体管螺母 3/8-24UNF-LH |
*标准配置
@可与原装产品互换，但完全不同与原装产品的设计.
BLACK WOLF is in no way affiliated with HYPERTHERM. The parts advertised for sale are not genuine HYPERTHERM parts, but are parts made for and by BLACK WOLF.
References to HYPERTHERM machines, torches,and numbers are for your convenience only. We reserve the right to substitute genuine HYPERTHERM parts in place of BLACK WOLF parts.
