BW ROB 501D
液冷却机器人焊枪冷却方式: 液体
焊丝直径: 1.0-1.6mm
暂载率: MIG 500A 100%/MAG 450A 100%
焊丝直径: 1.0-1.6mm
暂载率: MIG 500A 100%/MAG 450A 100%

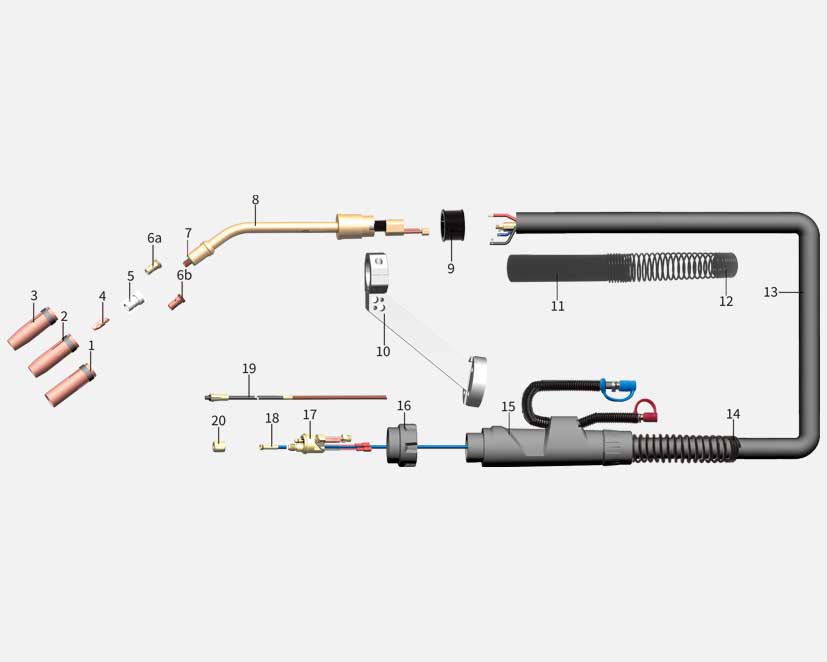

| No. | Order | 描述 | OEM p/n |
| RCZ0104.03 | BW ROB 501D 整枪 | ||
| 1 | MBZ0830.01 | 柱形喷管 Ø19mm | 145.0051 |
| 2 | MBZ0830.02 | 锥形喷管 Ø16mm | 145.0085 |
| 3 | MBZ0830.03 | 尖形喷管 Ø14mm | 145.0132 |
| 4 | RDZ0133.01 | M8×30×0.8 导电嘴 | |
| RDZ0133.02 | M8×30×0.9 导电嘴 | ||
| RDZ0133.03 | M8×30×1.0 导电嘴 | ||
| RDZ0133.04 | M8×30×1.2 导电嘴 | ||
| RDZ0133.05 | M8×30×1.4 导电嘴 | ||
| RDZ0133.06 | M8×30×1.6 导电嘴 | ||
| RDZ0133.07 | M8×30×0.8 导电嘴 铝焊 | ||
| RDZ0133.08 | M8×30×0.9 导电嘴 铝焊 | ||
| RDZ0133.09 | M8×30×1.0 导电嘴 铝焊 | ||
| RDZ0133.10 | M8×30×1.2 导电嘴 铝焊 | ||
| RDZ0133.11 | M8×30×1.4 导电嘴 铝焊 | ||
| RDZ0133.12 | M8×30×1.6 导电嘴 铝焊 | ||
| 5 | MBZ0839.01 | 分配器 DMC | 030.0145 |
| MBZ0839.02 | 分配器 陶瓷 | 030.0190 | |
| 6a | MBZ0835.05 | 导电嘴座 M8×25 黄铜 | |
| MBZ0835.07 | 导电嘴座 M8×29 黄铜 | ||
| 6b | MBZ0835.06 | 导电嘴座 M8×25 铬锆铜 | |
| MBZ0835.08 | 导电嘴座 M8×29 铬锆铜 | ||
| 7 | MBZ0849 | 绝缘垫片 | 030.0019 |
| 8 | RCZ0143 | BW ROB 501D 弯管 | |
| 9 | RCZ0143.01 | 弯管绝缘圈 | |
| 10 | RCZ0143.02 | 弯管夹持 | |
| 11 | MBZ0822.01 | 手把 | |
| 12 | MBZ0896.02 | 前电缆支撑弹簧 | |
| 13 | MBZ0860.01 | 电缆组 | |
| 14 | MBZ0897 | 后电缆支撑弹簧 | |
| 15 | MBZ0871.02 | 接头把套 | |
| 16 | MBZ0170.02 | 连接螺母套 | |
| 17 | MBZ0872 | 中央接头 WZ-2 | |
| 18 | MBZ0680.02.35 | 蓝色送丝软管 , 适用焊丝 Ø1.0-1.2 | |
| 19 | MBZ0880.04.35 | 铝焊丝专用送丝软管 | |
| 20 | MBZ0173 | 螺母 M10×1 | 501.0082 |
